- General Information
- Manufacturer
- Yamaha Corporation
- Manufacturer Website Address
- http://www.yamaha.com
- Brand Name
- Yamaha
- Product Series
- SWX
- Product Type
- Ethernet Switch

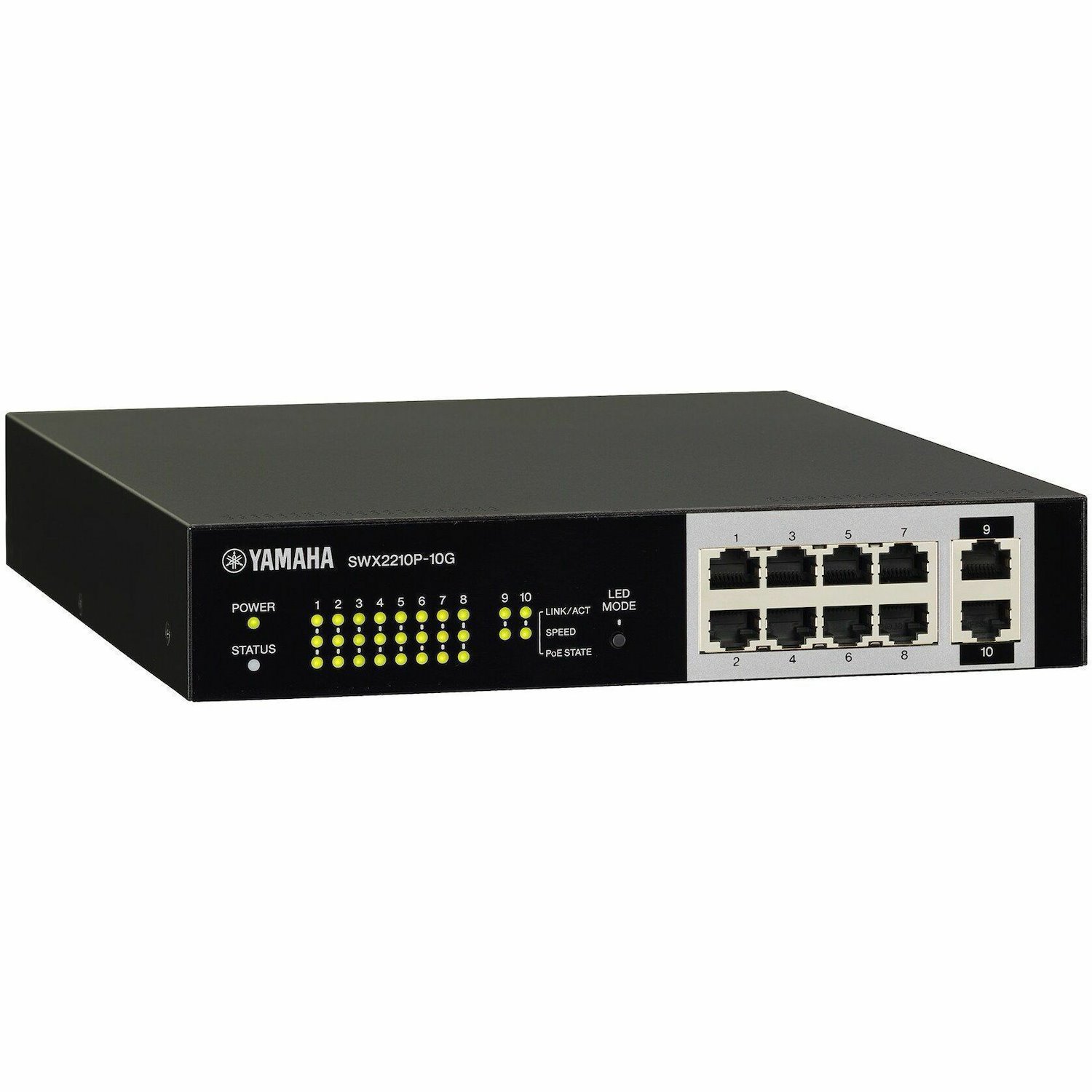

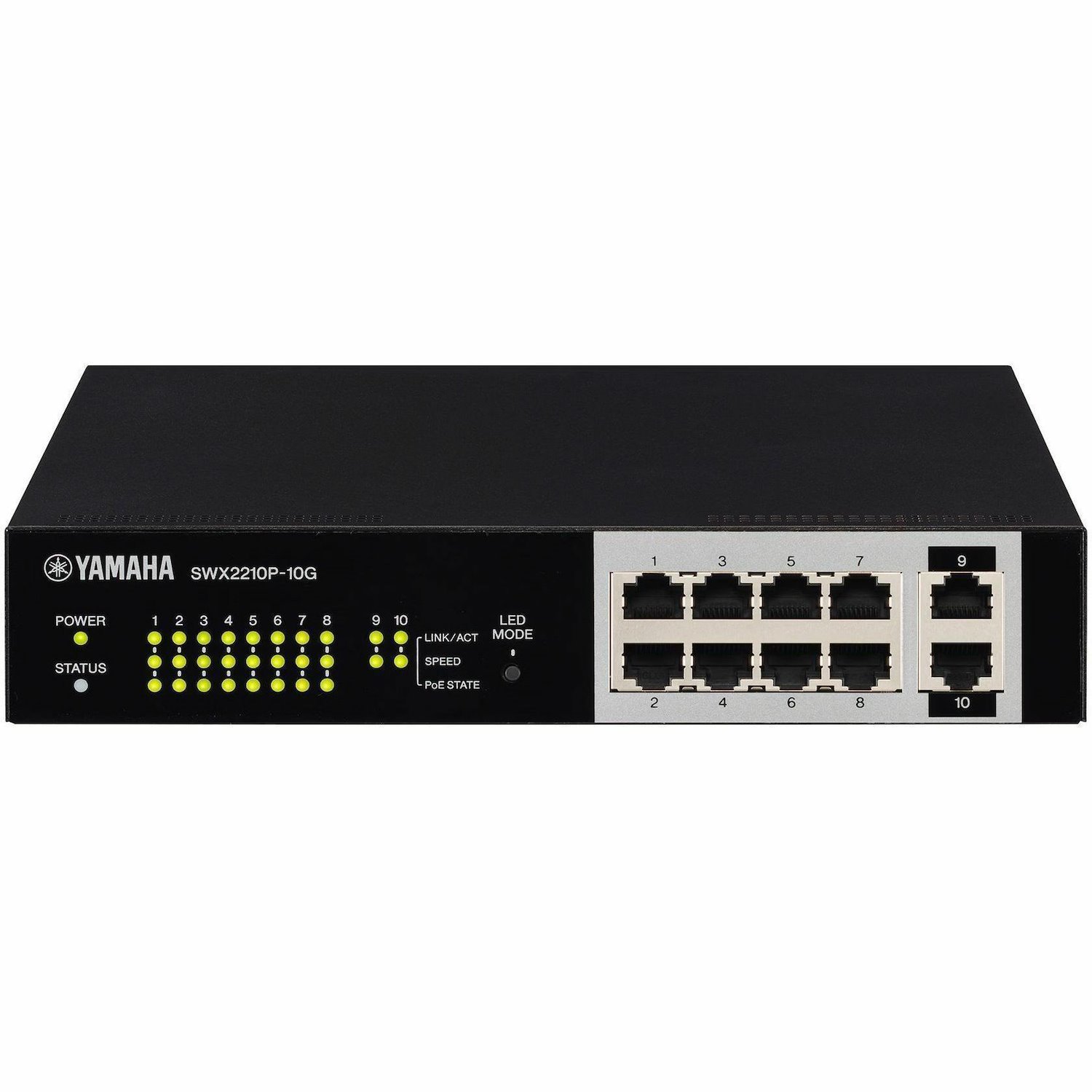

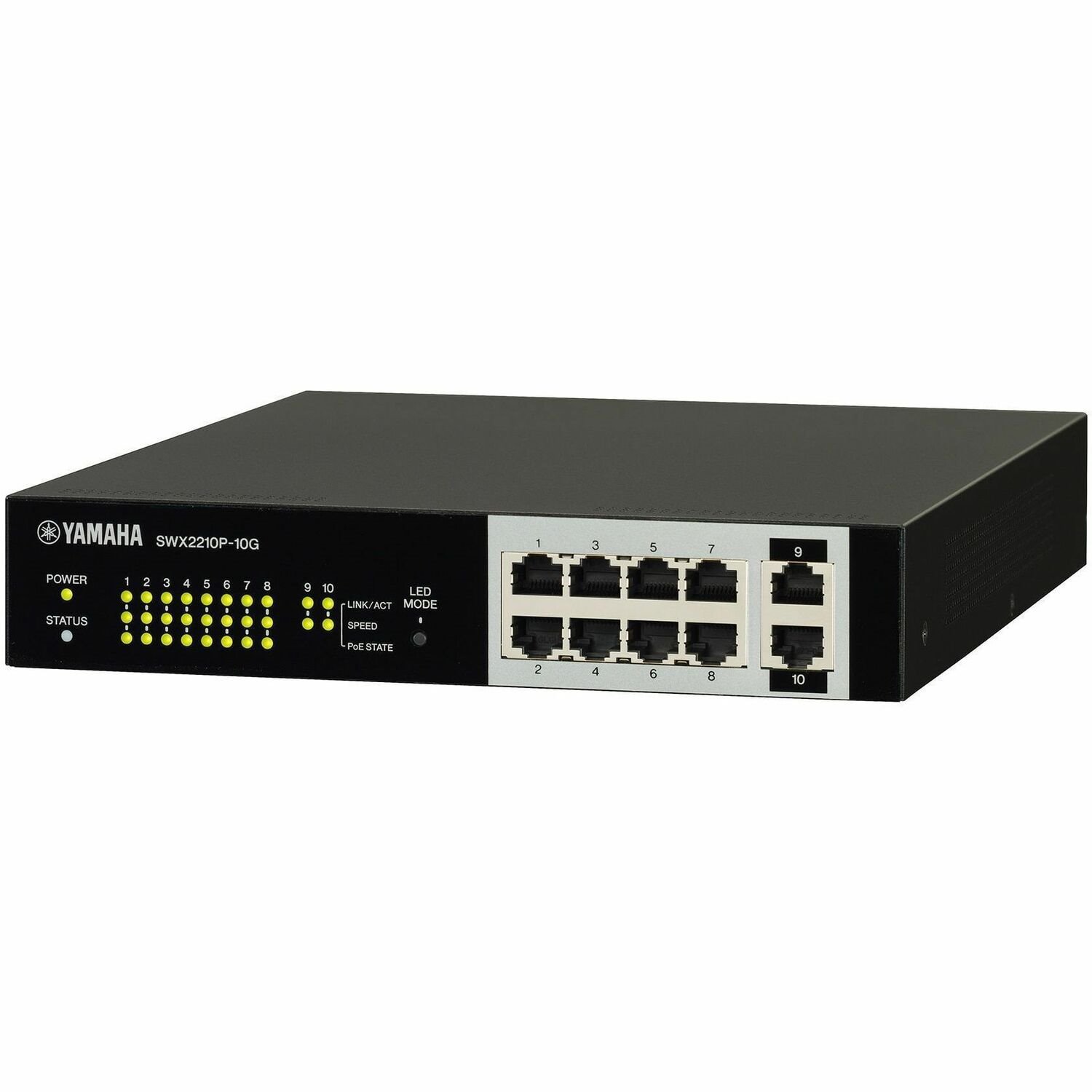

Smart L2 Network switch with PoE+
SWX2210P-10G is a smart L2 switch that can supply power to PoE powered devices on the network. Yamaha has integrated its own expertise in networking and professional audio fields and developed it as an L2 switch optimized for Dante audio networks.
Recommended settings for stable operation of a Dante network (such as QoS, EEE, and IGMP Snooping) can be made easily.
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- 2 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10Base-T
- 100Base-TX
- 1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3at
- IEEE 802.3
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 124 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Power Consumption
- 169 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Wall Mountable
- Rack-mountable
- Height
- 1.7"
- Width
- 8.7"
- Depth
- 11.6"
- Weight (Approximate)
- 4.19 lb
- Miscellaneous
- Package Contents
- SWX2210P-10G Ethernet Switch
- Manual (Read This First)
- Power cords
- Power cord clamp
- Legs take
- Application/Usage
- Network
