ViewSonic® TeamJoin™ solution, a Microsoft Teams Rooms certified offering, provides immersive and impactful meetings. It enhances communication and collaboration among diverse teams, irrespective of their locations. The solution includes a computing engine (MPC310-W31-TU), touch console (MRC1010-TN), and 65-inch digital display (CDE6530). This one-stop, scalable solution caters to your needs and meeting space size, making high-quality video conferencing accessible to businesses of all sizes.
Computing Engine (MPC310-W31-TU): Intel® 12th generation Core™ processor. Delivers additional security features such as Intel® Threat Detection Technology, Control-Flow Enforcement, and more
Touch Console (MRC1010-TN): 10.1" touch display. Effortlessly initiate, join, or manage meetings with a single touch

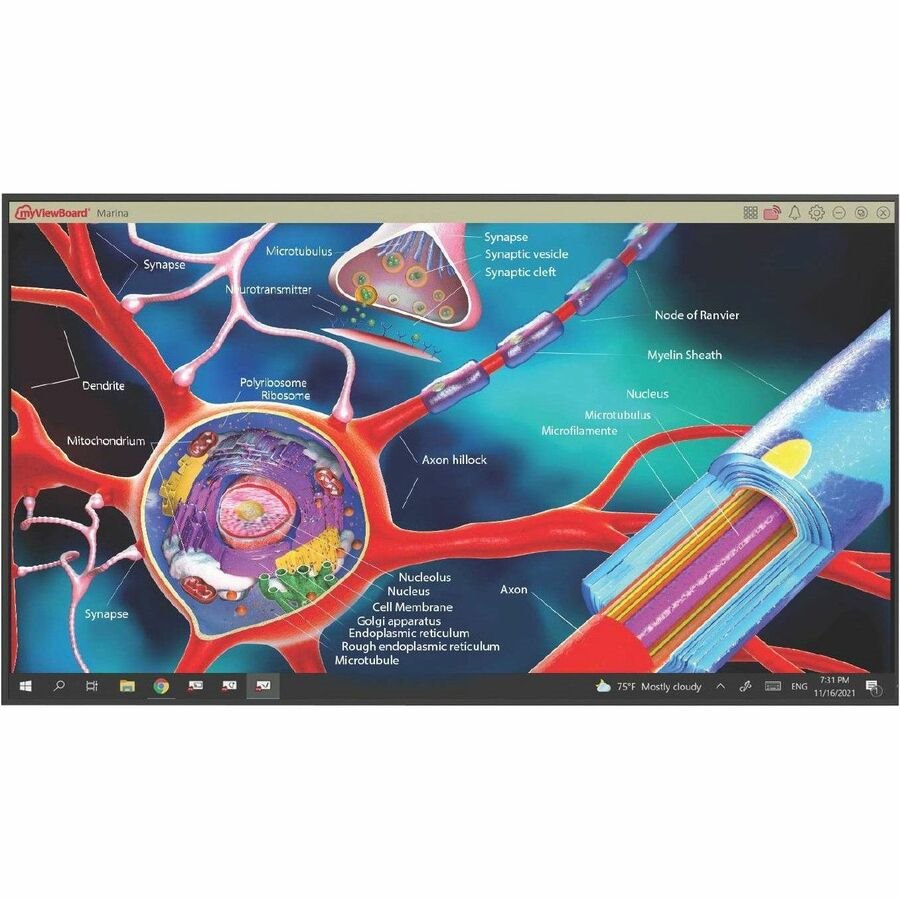

65-Inch Display (CDE6530): Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE6530 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast™ screen sharing software and the myViewBoard® Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What's more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player.
- General Information
- Manufacturer
- ViewSonic Corporation
- Manufacturer Website Address
- http://www.viewsonic.com
- Brand Name
- ViewSonic
- Product Series
- CDE30
- Product Type
- Digital Signage Display
- Technical Information
- Bezel Width
- 0.58"
- Bezel Width (Bottom)
- 0.58"
- Bezel Width (Top)
- 0.58"
- Bezel Width (Left)
- 0.58"
- Bezel Width (Right)
- 0.58"
- Surface Hardness
- 3H
- Panel Technology
- Advanced Super Dimension Switch ( ADS )
- Operation Hours
- 24 Hours/7 Days
- Processor & Chipset
- Processor Type
- Cortex A55
- Processor Core
- Quad-core (4 Core)
- Memory
- Standard Memory
- 4 GB
- Display & Graphics
- Number of Screens
- 1
- Viewable Screen Size
- 65"
- Display Screen Type
- LCD
- Display Resolution
- 3840 x 2160
- Response Time
- 6.50 ms
- Aspect Ratio
- 16:9
- Backlight Technology
- Direct LED
- Orientation
- Landscape/Portrait
- Maximum LED Life
- 5.7 Year
- Video
- Scan Format
- 2160p
- Dynamic Contrast Ratio
- 5,000:1
- Native Contrast Ratio
- 1,200:1
- Color Depth
- 8-bit+FRC
- Brightness
- 450 Nit
- Network & Communication
- Ethernet
- Yes
- Wireless LAN
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Serial
- Yes
- Number of HDMI Inputs
- 3
- Number of HDMI Outputs
- 1
- USB Type-C
- Yes
- RS-232C Input
- Yes
- Number of HDMI 2.0 Ports
- 1
- Software
- Operating System
- Android 11
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Operating Humidity
- 10%
- Maximum Operating Humidity
- 90%
- Physical Characteristics
- VESA Mount Standard
- 600 x 400
- Mount Type
- Wall Mountable
- Height
- 33"
- Width
- 57.6"
- Depth
- 3.2"
- Weight (Approximate)
- 56 lb
- Miscellaneous
- Package Contents
- CDE6530-MTR Digital Signage Display
- Computing Engine
- Touch Console
- Energy Star
- No
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin
- China
- TAA Compliant
- No
