- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F)
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
- PASSIVE COOLING: The industrial power supply cools itself by natural air convection
- DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
- NDAA / TAA compliant

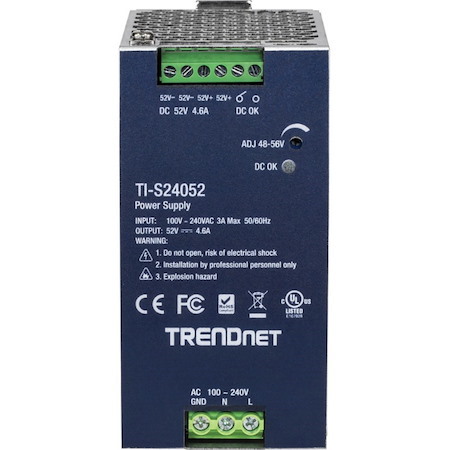

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power, and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° - 70° C (-13° - 158° F).
240W PowerProvides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points
Active PFCBuilt-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
ProtectionsOverload, short circuit, over voltage, over current, and over temperature protections
Passive CoolingThe industrial power supply is cooled by natural air convection
DIN-Rail MountThe DIN-Rail power supply features a metal enclosure with integrated DIN-Rail mount
Wide Operating TemperatureThe hardened power supply is designed for industrial environments with a wide operating temperature range of -25° - 70° C (-13° - 158° F)
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Efficiency
- 94%
- Number of Fans
- 1
- Power Description
- Output Voltage
- 52 V DC
- Output Voltage Detail
- 52 V DC @ 4.61 A
- Output Current
- 4.61 A
- Output Power
- 240 W
- Physical Characteristics
- Form Factor
- DIN Rail
- Height
- 2.5"
- Width
- 4.9"
- Depth
- 4.5"
- Weight (Approximate)
- 1.86 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
