- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Type
- SAS/SATA/SCSI Controller

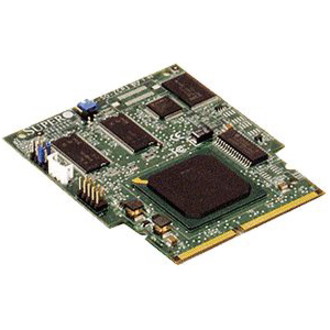

The AOC-SOZCR1 is a highly efficient, highly compatible and easy to use SAS/SATA/SCSI RAID Controller that allows the user to configure RAID 0, RAID 1, RAID 5, RAID 10 and JBOD by using Marvell's 88SX6041/-6081 (Hercules II), Adaptec's AIC-7901/-7902 Ultra 320 SCSI Controller or Adaptec's AIC-9410 SAS Controller on the motherboard. With the built-in Intel's Verde 400 MHz I/O Processor and 64 MB ECC DDR memory, the AOC-SOZCR1 supports PCIX speeds up to 100MHz and provides the user with a high-speed, space-saving, scalable and intelligent hardware RAID solution.
- Technical Information
- Host Interface
- PCI-X
- Controller Type
- Ultra320 SCSI
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- JBOD
- Physical Characteristics
- Height
- 3.2"
- Width
- 3.8"
- Form Factor
- Plug-in Card
- Miscellaneous
- Platform Supported
- PC
- Compatibility
Compatible Controllers:
- Adaptec SAS Host Controller (AIC-9410)
- Marvell Hercules-2 SATA Host Controller (AIC-8130 or AIC-8140)
- Adaptec Ultra320 SCSI Host Controller (AIC-7901 or AIC-7902)
Motherboard:
- X6DHR-3G2 (SAS)
- X6DHR-TG (SATA)
- X5DHR-8G2 (SCSI)
- X5DPR-8G2+ (SCSI)
- X5DLR-8G2 (SCSI)
- X5DLR-8G2+ (SCSI)
- P4DPR-8G2+ (SCSI)
- H8DAR-8 (SCSI)
System:
- SS6014H-32 (SAS)
- SS6014H-T (SATA)
- SS6012P-8
- SS6013L-8
- SS6013P-8
- SS6013P-8+
- SS6023L-8R Note: The AOC-SOZCR1 is compatible only with these Motherboards & Systems.
