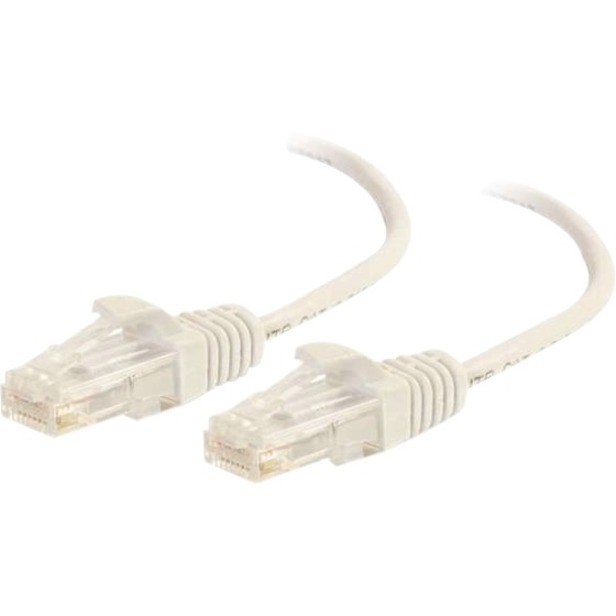

The Cat 6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat 6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat 6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat 6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Legrand
- Product Series
- Q
- Product Type
- Network Cable
- Technical Information
- Cable Type
- Category 6
- Cable Characteristic
- Patch Cable
- Cable Length
- 2 ft
- Connector Type on First End
- RJ-45 Network - Male
- Connector on First End Details
- 1 x RJ-45 Network - Male
- Connector Type on Second End
- RJ-45 Network - Male
- Connector on Second End Details
- 1 x RJ-45 Network - Male
- Contact Plating
- Gold
- Conductor
- Copper
- Jacket Type
- CMR
- Device Supported
- Network Device
- American Wire Gauge
- 28 AWG
- Boot Type
- Snagless
- Features
- Molded
- Strain Relief
- Stranded
- Minimized Near-End Crosstalk (NEXT)
- Physical Characteristics
- Product Color
- White
- Insulation Material
- High-density Polyethylene (HDPE)
- Jacket Material
- Polyvinyl Chloride (PVC)
- Miscellaneous
- Environmentally Friendly
- Yes
