- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Series
- CX 6200
- Product Type
- Ethernet Switch

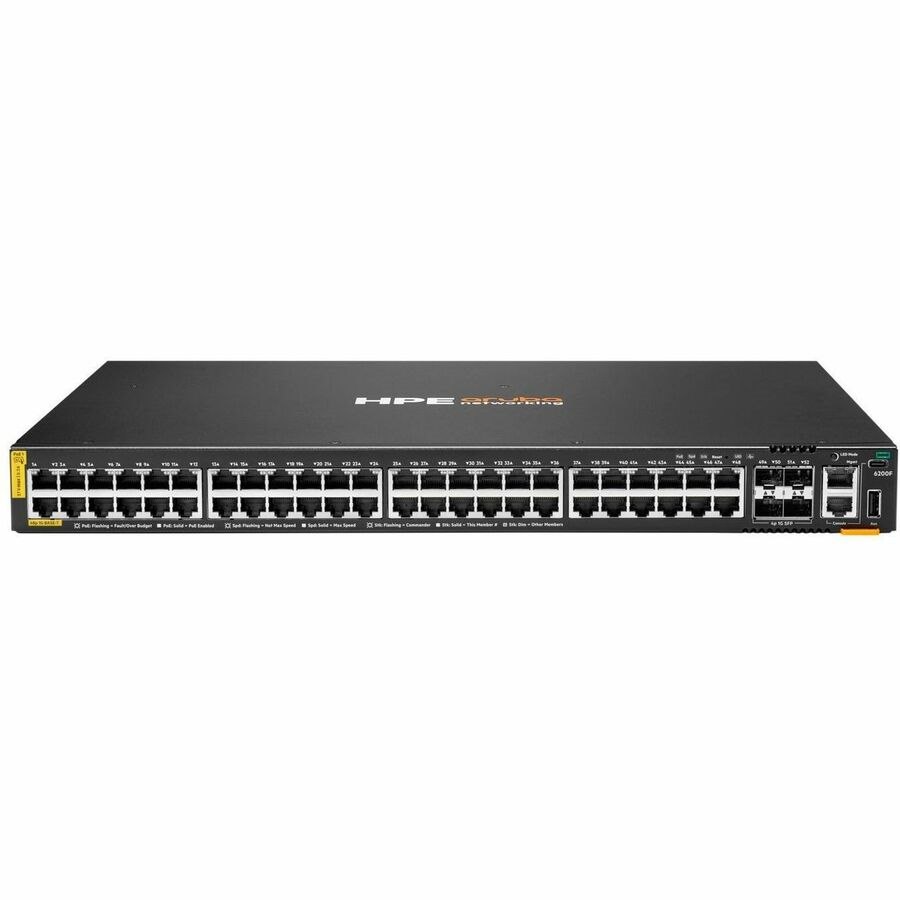

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Features | Maximize your HPE Aruba Networking CX 6200 Switch Series | What's New
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
- Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
- Dynamic Segmentation enables secure access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
- Technical Information
- Features
- Hot-swappable
- VSF Stacking
- Intelligent monitoring
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port
- 4 x Gigabit Ethernet SFP Expansion Slot
- 1 x USB-C Console Port
- 1 x RJ-45 Console Port
- 1 x OOBM Port
- 1 x USB Type-A Host port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- AC
- PoE
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 76 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 12.9"
- Weight (Approximate)
- 11.24 lb
- Miscellaneous
- Application/Usage
- Network
- Enterprise
- Branch Office
- Campus
- Security
- Wireless Access Point
- IoT Devices
