- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Line
- I-Series 3
- Product Type
- POS Terminal

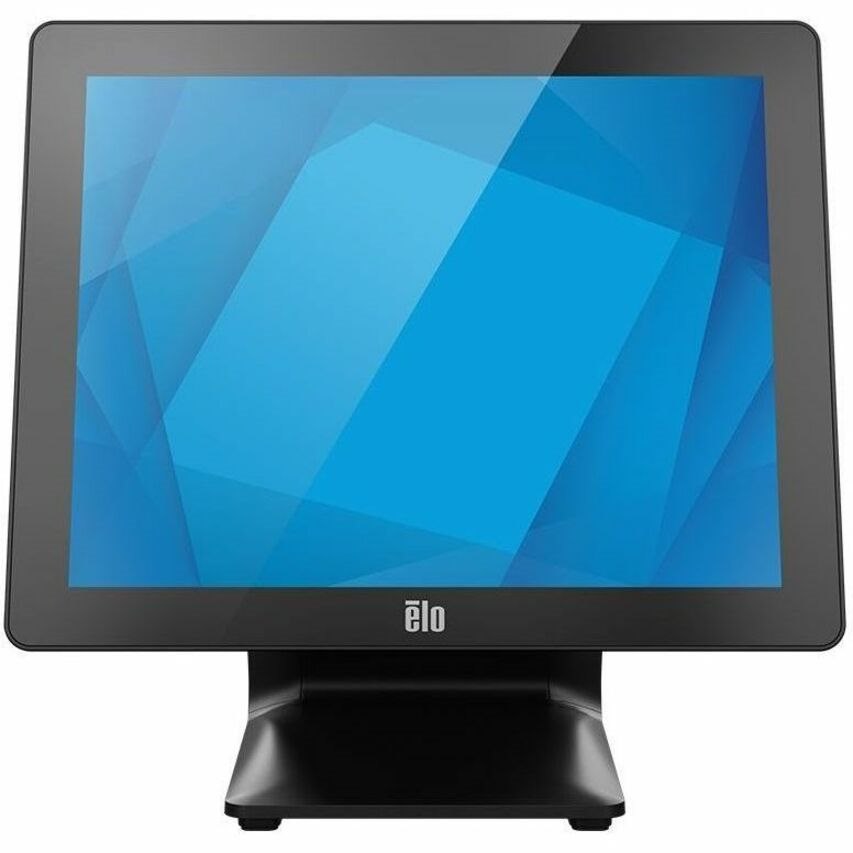

Completely redesigned | I-Series 3 Slate with Intel
Brilliant and beautiful, interactive platform.
10-touch TouchPro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Cooling Fan
- Fanless
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Form Factor
- All-in-One
- Features
- Anti-glare
- Edge-to-Edge Glass Design
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Core i7
- Maximum Turbo Speed
- 4.80 GHz
- Processor Model
- i7-1265UL
- Processor Cache
- 12 MB
- vPro Technology
- Yes
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- DDR5 SDRAM
- Storage
- Solid State Drive Capacity
- 256 GB
- Solid State Drive Interface
- M.2/PCI Express
- Display & Graphics
- Screen Size
- 15.6"
- Active Display Size (Horizontal)
- 11.97"
- Active Display Size (Vertical)
- 8.98"
- Display Screen Type
- LED
- Screen Mode
- XGA
- Panel Technology
- In-plane Switching Technology (IPS)
- Touchscreen
- Yes
- Touchscreen Technology
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touch Points
- 10
- Aspect Ratio
- 4:3
- Contrast Ratio
- 800:1
- Response Time
- 23 ms
- Color Supported
- 262,000 Colors
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 150°
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- Iris Xe Graphics
- Network & Communication
- Wireless LAN
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- USB
- Yes
- Powered USB
- Yes
- USB Type-C
- Yes
- Network (RJ-45)
- Yes
- Cash Drawer Port
- Yes
- Serial Port
- Yes
- RJ-50
- Yes
- Number of Micro USB 2.0 Ports
- 4
- Number of USB 3.0 Ports (Rear)
- 4
- Number of USB Type C Ports
- 1
- Built-in Devices
- Number of Speakers
- 2
- Speaker Power
- 2 W
- Software
- Operating System
- Windows 10 Enterprise LTSC 2021
- Power Description
- Power Source
- AC Power
- DC Power
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Weight (Approximate)
- 14.77 lb
- Miscellaneous
- Package Contents
- I-Series 3 POS Terminal
- North America Power Cord
- European Power Cord
- Power Adapter - 180W
- Cable RJ-50 to DB-9
- Quick Installation Guide (QIG)
- Cable Tie
- CFD Mounting Screw
- VESA Mounting Screw
- VESA Cover
- VESA Cover Mounting Screw
- Stand
- Ingress Protection (IP) Rating
- IP54
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 8.0
