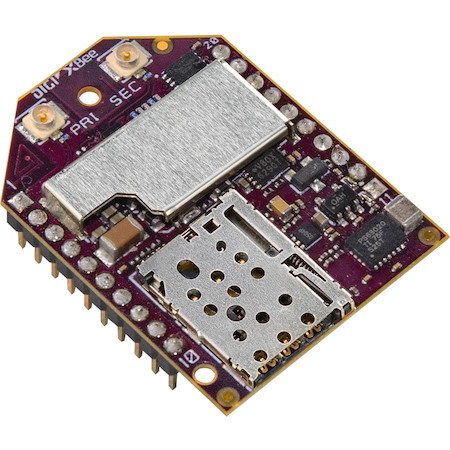

Digi 4G LTE CAT 1 Cellular Smart Modem

  • Part: 1102509
$104.01

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Digi International
    • Manufacturer Website Address
    • http://www.digi.com
    • Brand Name
    • Digi
    • Product Line
    • XBee
    • Product Type
    • Radio Modem

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Ideal for moderate bandwidth (typically < 25 MB per month) and low-cost IoT applications, Digi XBee 3 Cellular LTE Cat 1 modules are cost-competitive with legacy 2G/3G standard devices.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. Standard Digi XBee API frames and AT commands, MicroPython and XCTU software tools simplify adding functionality, set-up, configuration and testing. Digi XBee 3 modules are the latest addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software - all engineered to accelerate development and deployment.

BENEFITS

  • Integrated MicroPython programmability enables custom scripting directly on the modem
  • Digi XBee Transparent and API modes simplify s/w design
  • 90 days of free cellular service with development kits
  • FCC certified and carrier end-device certified for Verizon, AT&T, Telus and Bell
  • Smallest end-device certified cellular modem
  • Direct USB provides easy PPP integration option
  • OTA firmware updates
  • Enhanced with Digi TrustFence® security framework
  • Manage and configure with XCTU and Digi Remote Manager®
  • Dual-mode radio for local configuration over Bluetooth® low energy using the Digi XBee Mobile app

  • Physical Characteristics
    • Height
    • 1"
    • Width
    • 1.3"
  • Miscellaneous
    • Additional Information
    • HARDWARE:
      • CELLULAR CHIPSET: Telit LE866A1-NA
      • FORM FACTOR: Digi XBee 20-pin through-hole
      • ANTENNA OPTIONS: 1 U.FL: Cellular Primary, 1 U.FL: Cellular Diversity Embedded Bluetooth Antenna
      • OPERATING TEMPERATURE: -40º C to 80º C (-40º F to 176º F)
      • SIM SIZE: 4FF Nano
      INTERFACE AND I/O:
      • DATA INTERFACE: UART, SPI, USB
      • OPERATING MODES: Transparent and API over serial, PPP over USB or Serial
      • SECURITY: Digi Trustfence® security with Secure Boot and Protected JTAG
      • CONFIGURATION TOOLS: Digi XCTU (Local), Digi Remote Manager (OTA)
      • EMBEDDED PROGRAMMABILITY: MicroPython with 32 KB Flash / 32 KB RAM
      • I/O: 4 ADC lines (10-bit), 13 Digital I/O, I2C
      • BLUETOOTH: Bluetooth LE Ready
      CELLULAR CHARACTERISTICS:
      • TRANSMIT POWER: Up to 23 dBm
      • RECEIVE SENSITIVITY: -102 dBm
      • CARRIER APPROVALS:
        • AT&T End-Device Certified
        • Bell End-Device Certified
        • Telus End-Device Certified
        • Verizon End-Device Certified (pending)
        • Compatible with other LTE Cat 1 carriers
      • SUPPORTED BANDS:
        • Bands 2, 4, 12
        • Verizon bands 4, 13 (coming soon)
      • DOWNLINK/UPLINK SPEEDS:
        • 10 Mbit/s Downlink, 5 Mbit/s Uplink (USB)
        • 921 Kbit/s Downlink and Uplink (UART)
      • DUPLEX MODE: Full-duplex
      POWER REQUIREMENTS (AT 3.3 VDC INPUT POWER):
      • SUPPLY VOLTAGE: 3.0 to 5.5 V
      • PEAK TRANSMIT CURRENT:
        • 1000 mA Bluetooth disabled
        • 1060 mA Bluetooth enabled
      • AVG TRANSMIT CURRENT: 850 mA
