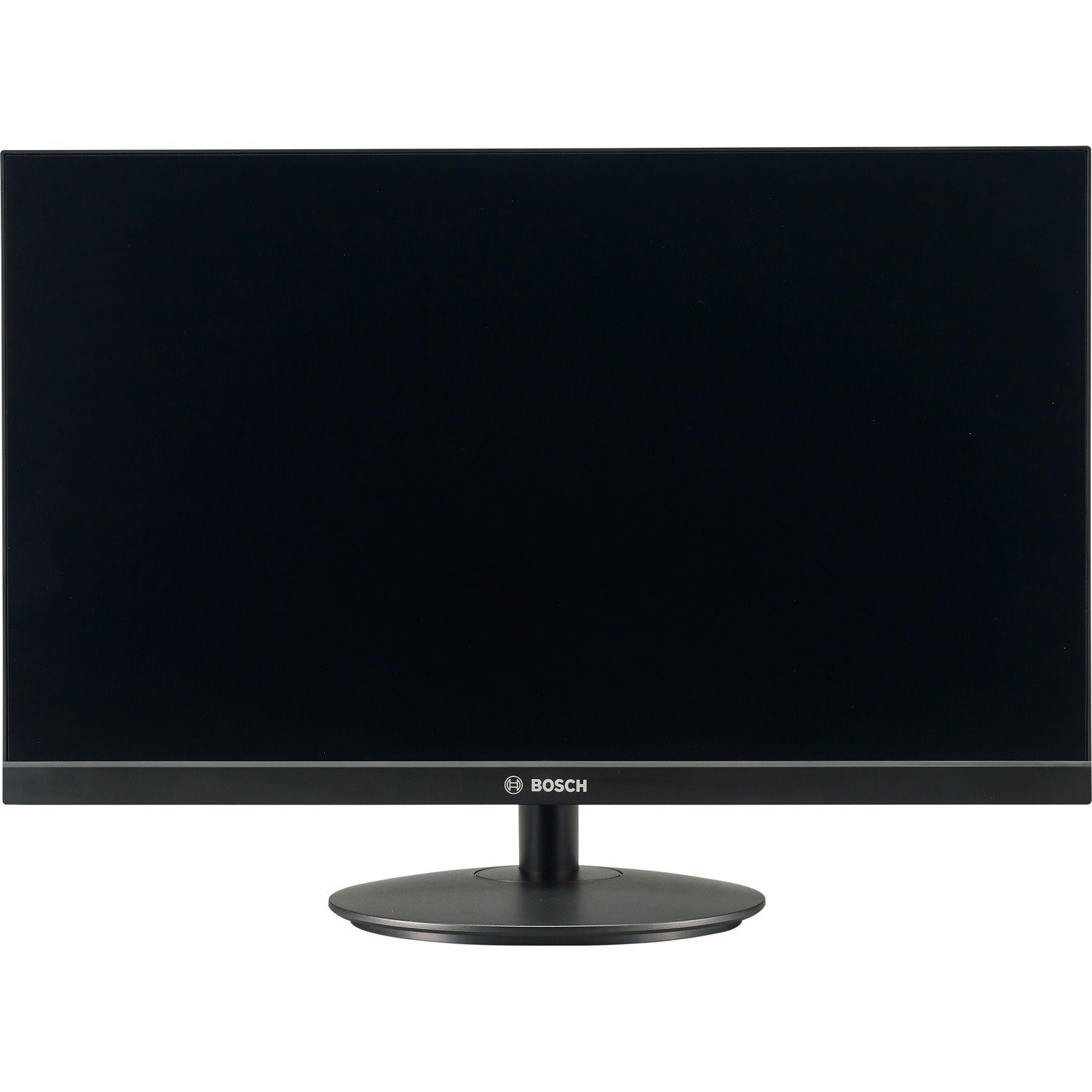

The Bosch high performance LED monitor is a high quality monitor ideal for use in a video surveillance environment. The monitor features a color LCD flat-screen panel in full HD and a 23.8-inch viewable picture area. It features wide horizontal and vertical viewing angles, precise color reproduction and anti-image retention.
Functions
Excellent image quality
The high performance LED monitor from Bosch adapts automatically to the input resolution of the incoming video signal up to 1920 x 1080 resolution (Full HD).
Anti-image retention
The anti-image retention capability of the monitor helps prevent image sticking or image burning that may occur in situations of displaying static scenes over a long period of time, by shifting the entire screen by one pixel distance clockwise after a set time interval. This interval can be customized in the Onscreen display menu.
Precise color reproduction
The monitor complies with standard Delta E2000 < 2 to provide true color performance from your camera to your screen. The monitor automatically focuses on setting the correct color, temperature, and gamma curve settings to deliver the highest possible picture quality.
Suited for 24/7 usage
The monitor is designed and has been tested for 24/7 usage.
USB for firmware upgrade
The firmware of the monitor can be upgraded by using the USB port.
HDCP
The monitor supports High-bandwidth Digital Content Protection (HDCP) to allow playback off HDCPencrypted content.
- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Bosch
- Packaged Quantity
- 1
- Product Type
- LED Monitor
- Technical Information
- Number of Screens
- 1
- Screen Size Class
- 24"
- Viewable Screen Size
- 23.8"
- Screen Mode
- Full HD
- Response Time
- 14 ms
- Aspect Ratio
- 16:9
- Mount Type
- Wall Mountable
- Backlight Technology
- LED
- HDCP Supported
- Yes
- Features
- Anti-image Retention
- Video
- Maximum Resolution
- 1920 x 1080
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 200 Nit
- Audio
- Speakers
- Yes
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- DisplayPort
- Yes
- Power Description
- Operating Power Consumption
- 16.50 W
- Standby Power Consumption
- 500 mW
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Height
- 12.9"
- Width
- 21.3"
- Depth
- 1.9"
- Height with Stand
- 15.25"
- Width with Stand
- 21.30"
- Depth with Stand
- 8.65"
- Weight (Approximate)
- 8.38 lb
- Miscellaneous
- Package Contents
- 23.8 inch FHD LED monitor
- 2 x Power cords (EU plug x1 and US plug x1)
- 1 x HDMI to HDMI cable (HDMI2.0; 1.5meter)
- 1 x DisplayPort to DisplayPort cable
- 1 x DisplayPort to miniDisplayPort converter
- 1 x Quick Installation Guide
- 1 x Safety instructions
- Country of Origin
- China
