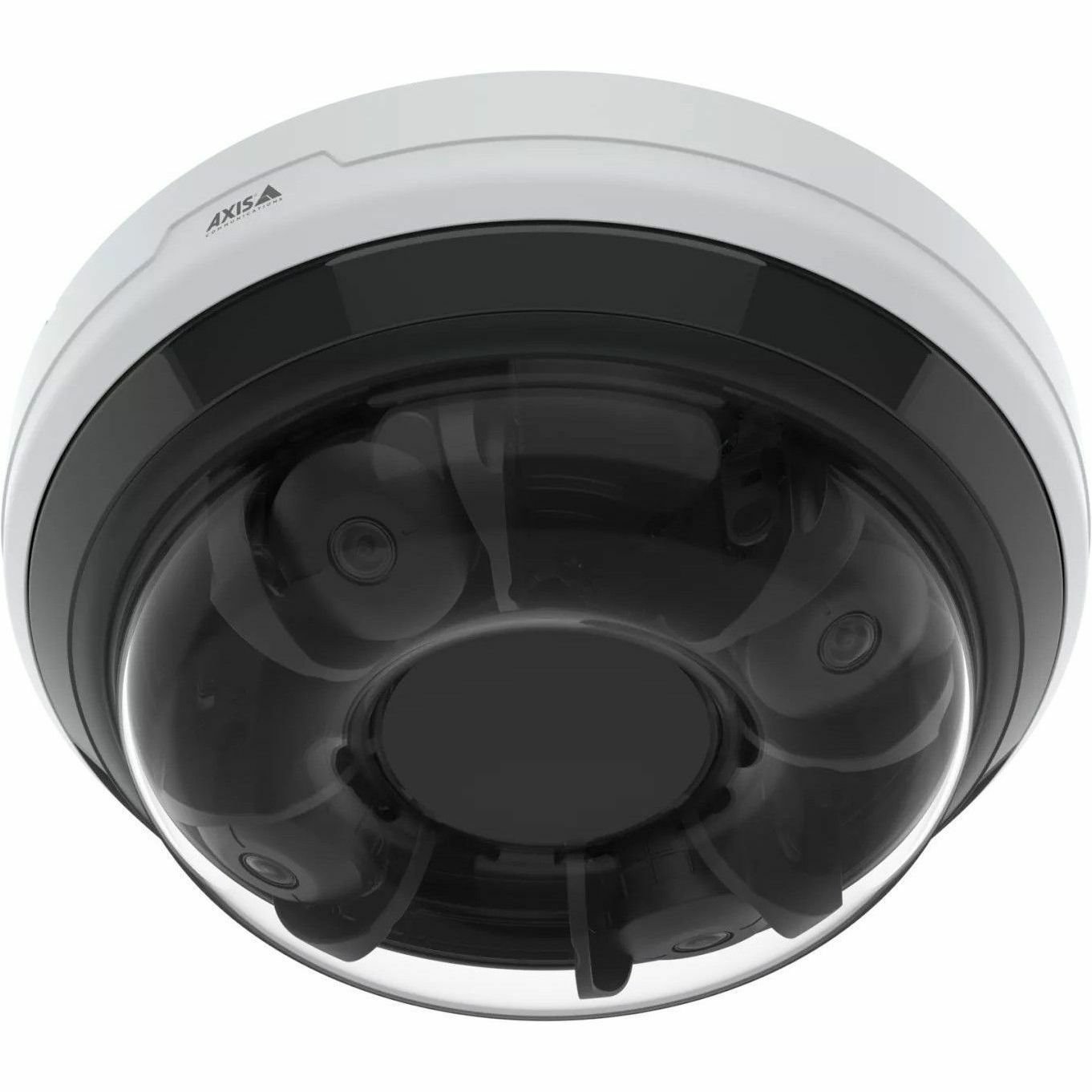

AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations.
- 4x5 MP at 20 fps per channel
- Remote pan, tilt, roll, zoom (PTRZ)
- Support for powerful analytics
- 360° IR illumination with individually controlled LEDs
- Built-in cybersecurity with Axis Edge Vault
- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- P37
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- HD Recording
- Yes
- Camera Iris
- Fixed
- AI-powered
- Yes
- Infrared (IR) Cut-off Filter
- Yes
- Languages Support
- English
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Portuguese
- Polish
- Traditional Chinese
- Dutch
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Image Sensor Size
- 1/2.78"
- Color Supported
- Color
- Field of View
- 71.5°-30°
- Effective Camera Resolution
- 5 Megapixel
- Number of Sensors
- 4
- Video
- Video Formats
- H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC) Main Profile
- Motion JPEG
- H.264
- H.265
- Zipstream
- H.264B
- H.264M
- H.264H
- H.265B
- H.265H
- H.265M
- Maximum Video Resolution
- 2592 x 1944
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 3.18 mm
- Maximum Focal Length
- 7.42 mm
- Lens Included
- Yes
- Minimum Aperture
- f/2.7
- Maximum Aperture
- f/1.6
- Optical Zoom
- 2.3x
- Exposure
- Shortest Shutter Speed
- 1/19500 Second
- Longest Shutter Speed
- 1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- HTTP
- HTTPS
- HTTP/2
- TLS
- FTP
- SFTP
- CIFS/SMB
- SMTP
- mDNS (Bonjour)
- UPnP
- SNMPv1/v2c/v3 (MIB2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RSTP
- RTP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- RTCP
- ICMP
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT v3.1.1
- UDP/TCP/TLS
- ZeroConf
- IPv6 USGv6
- ICMPv4/ICMPv6
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 23.70 W
- Power Source Type
- PoE
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Bracket Mount
- Junction Box Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Product Material
- Aluminum
- Plastic
- Polycarbonate
- Weight (Approximate)
- 6.61 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Minimum Operating Humidity (Condensing)
- 10%
- Maximum Operating Humidity (Condensing)
- 100%
- Minimum Storage Humidity (Non-condensing)
- 5%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Day/Night
- Wide Dynamic Range
- White Balance
- Mirror
- Privacy Masking
- Built-in Speaker
- 2D Noise Reduction
- 3D Noise Reduction
- Motion Detection
- Tampering Alarm
- Human Detection
- Vehicle Detection
- Indoor/Outdoor
- Outdoor
- Package Contents
- P3747-PLVE Panoramic Camera
- Installation Guide
- Connector Guard
- Cable Gasket
- Mounting Plate
- Dome Casing
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
