- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Type
- Solid State Drive

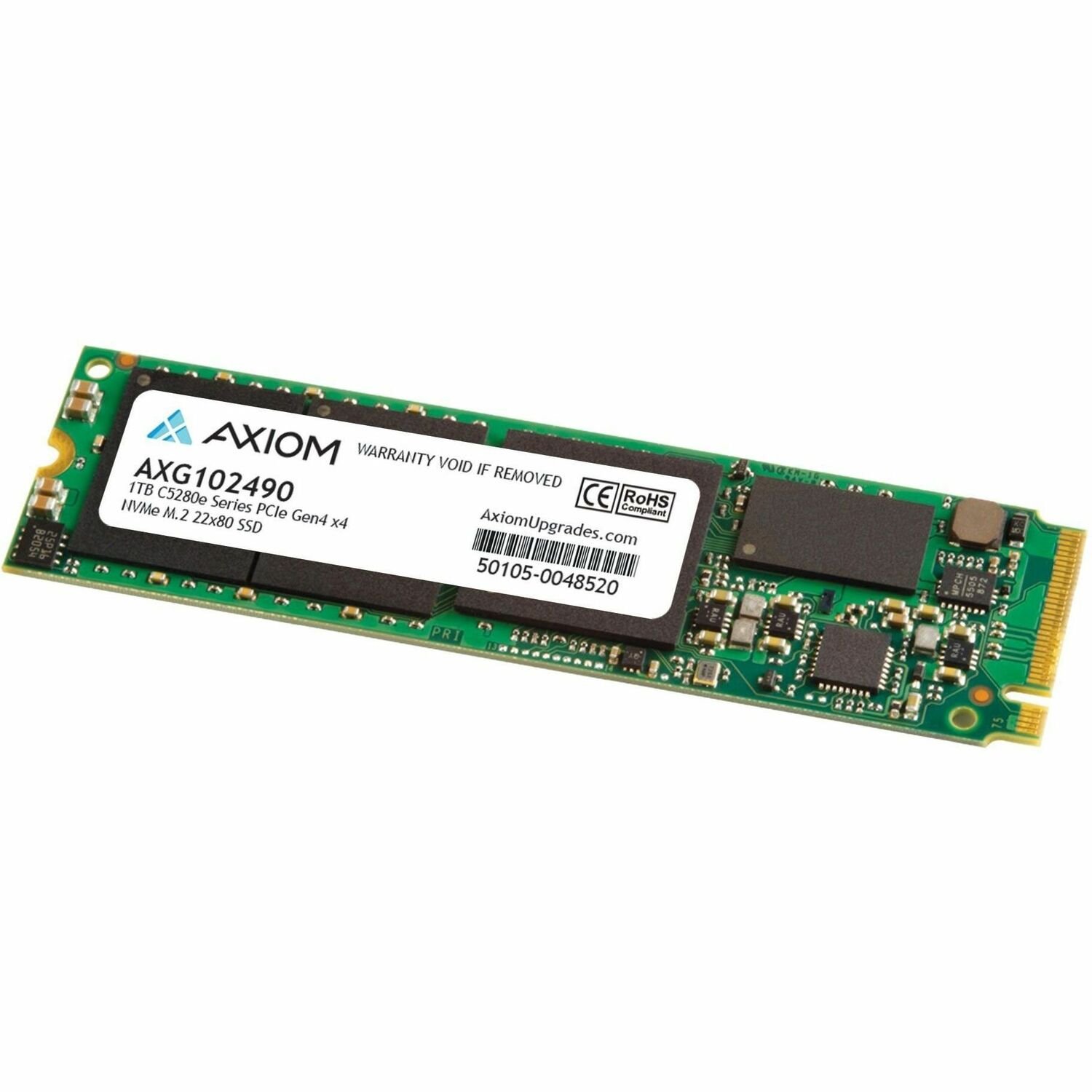

The Axiom High Speed C5280e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5280e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x80mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 500GB, 1TB and 2TB capacities.
Key Features & Benefits- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Storage Capacity
- 1 TB
- Features
- S.M.A.R.T
- SLC Cache
- Wear Leveling
- Garbage Collection
- 3D QLC NAND Technology
- LDPC ECC Technology
- Compact Design
- Encryption Standard
- 256-bit AES
- Drive Performance
- Random 4KB Read
- 195000IOPS
- Random 4KB Write
- 289000IOPS
- Endurance (DWPD)
- 0.446
- Endurance (TBW)
- 500 TB
- Maximum Sequential Read
- 5.08 GB/s
- Maximum Sequential Write
- 4.27 GB/s
- Mean Time Between Failures (MTBF)
- 171.1 Year
- Interfaces/Ports
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 4.0 x4
- Power Description
- Standby Power Consumption
- 4.75 W
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- M.2 2280
- Width
- 0.9"
- Length
- 3.1"
- Weight (Approximate)
- 1.41 oz
- Miscellaneous
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
