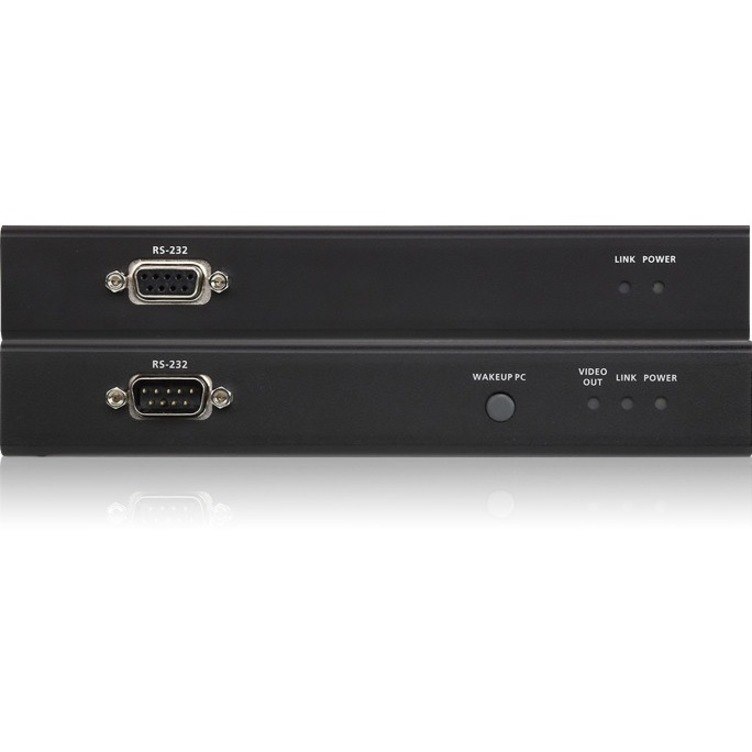

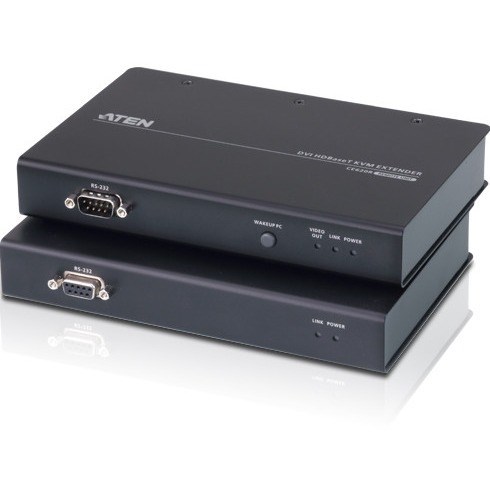

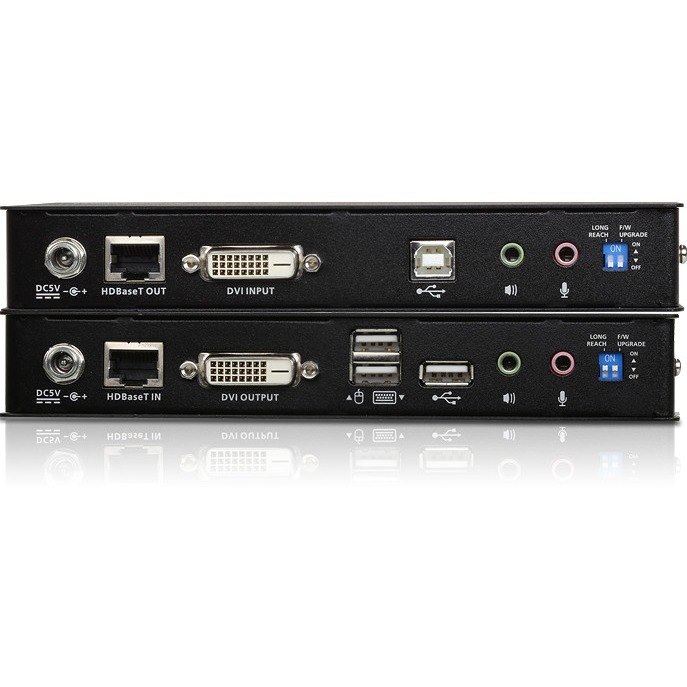

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- KVM Console/Extender
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Number of Remote Users Supported
- 1
- Maximum Operating Distance
- 492.13 ft
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DVI
- Yes
- Headphone
- Yes
- Microphone
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 4
- Number of DVI Ports
- 2
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Transmitter Height
- 1.13"
- Transmitter Width
- 4.83"
- Transmitter Depth
- 7.17"
- Receiver Height
- 1.13"
- Receiver Width
- 4.83"
- Receiver Depth
- 7.17"
- Transmitter Weight (Approximate)
- 1.39 lb
- Receiver Weight (Approximate)
- 1.41 lb
- Miscellaneous
- Package Contents
- 1 x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1 x Custom DVI KVM Cable Set
- 2 x Power Adapters
- 2 x Mounting Kits
- 8 x Foot Pads
- 1 x User Instructions
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- Taiwan
