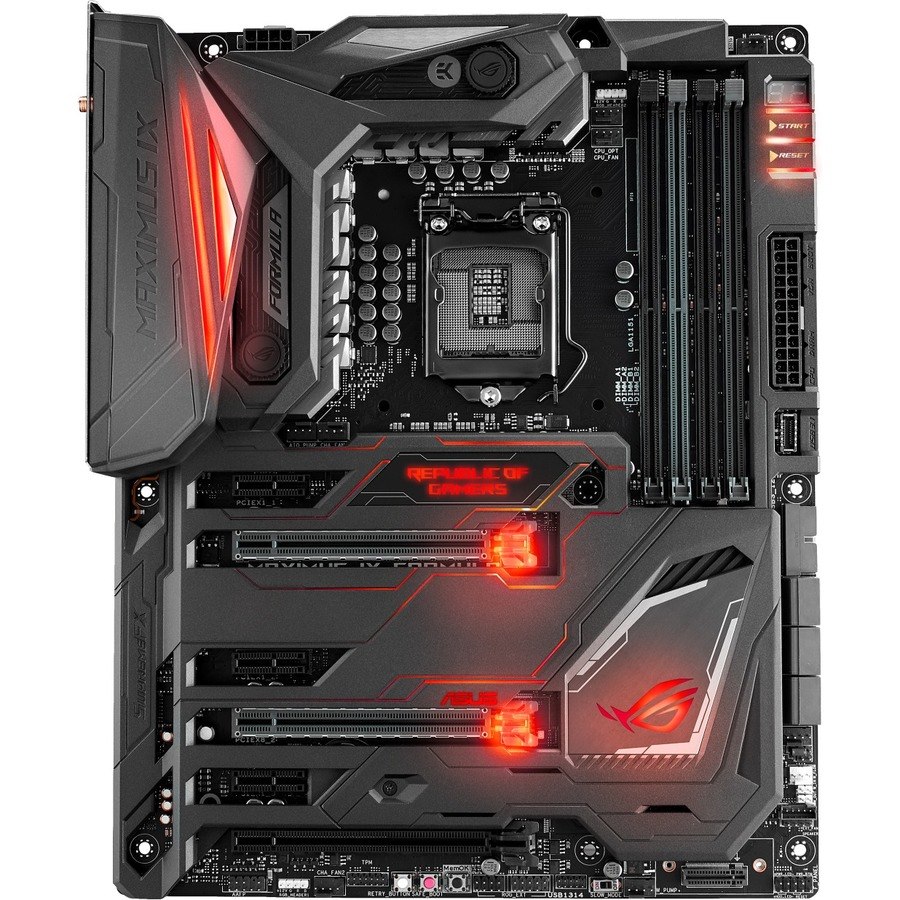

Designed for hardcore water cooling, the ROG Maximus IX Formula takes high-end gaming to the next level. Connect liquid loops to the CrossChill EK II VRM block for optimal cooling. Customizable AURA Sync lighting and an integrated I/O shield elevate the styling while a full backplate adds structural reinforcement.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus ROG
- Product Type
- Desktop Motherboard
- Warranty
- Limited Warranty
- 3 Year
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z270
- Total Processor Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Core i7
- Core i3
- Core i5
- Celeron
- Pentium
- Multi GPU Supported
- CrossFireX
- SLI
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- UDIMM
- DIMM
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 3000 MHz
- 2800 MHz
- 3600 MHz
- 3866 MHz
- 2400 MHz
- 3733 MHz
- 3200 MHz
- 4000 MHz
- 3300 MHz
- 3333 MHz
- 3466 MHz
- 3400 MHz
- 2666 MHz
- 2133 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 10
- 5
- 1
- 0
- Video
- Onboard Video
- CPU Dependent Video
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- HD Graphics
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 6.0
- Total Number of PCI Express Slots
- 6
- Number of PCI Express x1 Slots
- 3
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 10
- Number of USB 3.0 Ports
- 4
- Number of USB 3.1 Ports
- 2
- S/PDIF
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 5
- Number of Onboard USB 3.0 Ports
- 2
- Number of Onboard USB 3.1 Ports
- 1
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Miscellaneous
- Package Contents
- Maximus IX Formula Desktop Motherboard
- User Guide
- Support DVD
- 3 x 2-in-1 SATA 6Gb/s Cables
- 1 x SLI™ HB Bridge
- 1 x Q-Connector
- 1 x ROG Coaster
- 1 x 10-in-1 ROG Cable Label
- 1 x CPU Installation Tool
- 1 x M.2 Screw Package
- 1 x Extension Cable for RGB Strips (80cm)
- 1 x ROG sticker
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
