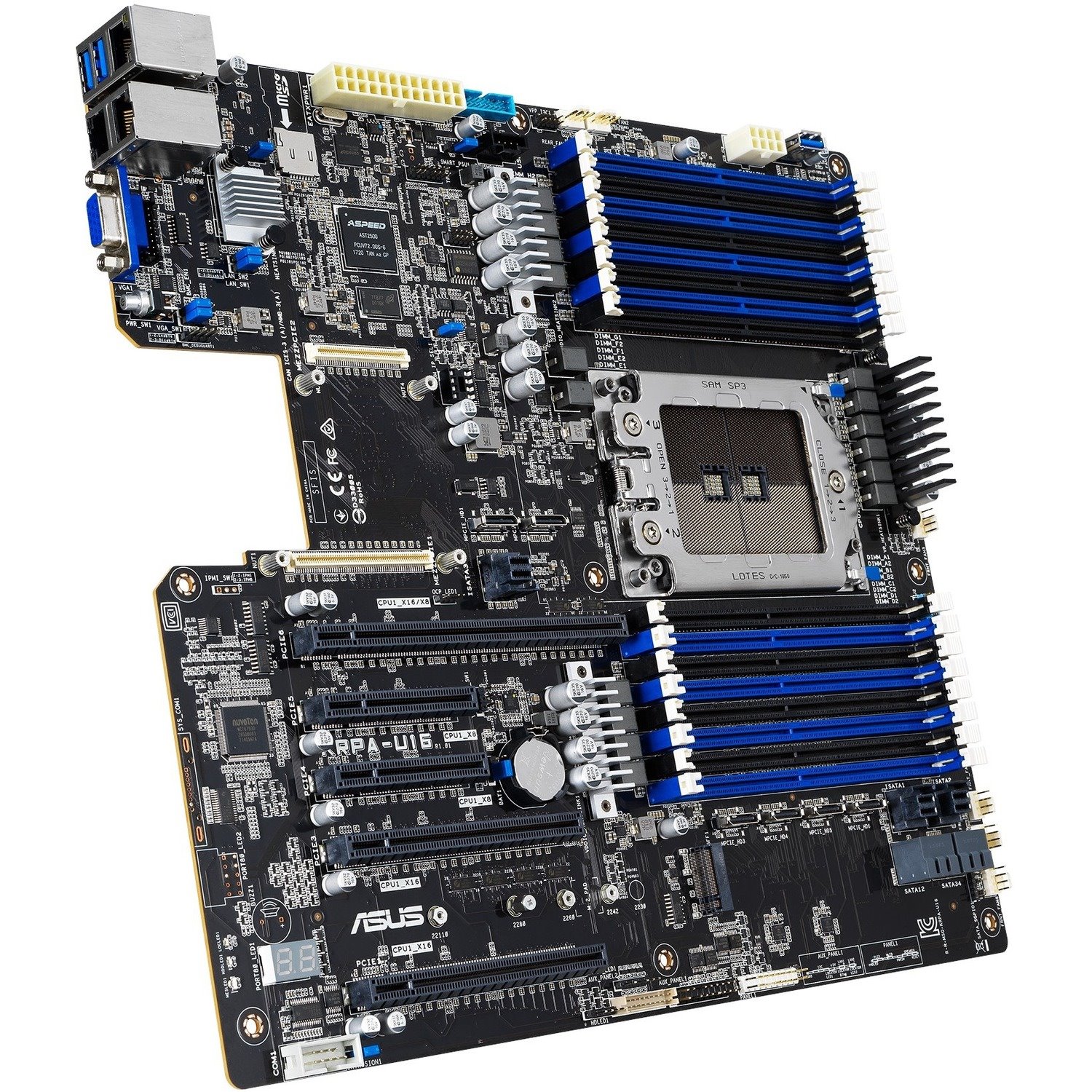

AMD EPYC™ 7002 LGA 4094 EEB server motherboard with DDR4 3200 MHz, PCIe 4.0, M.2, NVMe, SAS, SATA, OCP 2.0 Mezzanine card, dual LAN and ASUS Control Center

• Powered by AMD EPYC™ 7002 Series Processors with enhanced I/O, memory and security
• Features up to five PCI 4.0/3.0 lanes with 16 GT/s for next-gen connectivity
• Supports up to 16 DIMMs for up to 2 TB of memory
• Up to 12 NVMe drives via Oculink, plus ASUS riser cards to deliver low-latency performance
• Dual onboard LAN for improved data throughput and efficiency, plus one optional OCP 2.0 mezzanine card supporting up to 100G or higher ultrafast speed for HPC
• Complete IT infrastructure management with ASMB9-iKVM out-of-band remote management and ASUS Control Center for in-band management
• Features ASUS-exclusive Thermal Radar 2.0 technology that automatically adjusts fan curves across various zones

Powered by AMD EPYC™ 7002 Series Processors

The AMD EPYC™ 7002 processor features the world's first 7nm datacenter-design and a PCI Express® 4.0-capable x86 server processor with up to 2x the performance and 4x the floating point capability versus the previous 7001 generation. With support for up to 64 cores, 128 threads, 8-channels DDR4 3200, and 128 PCIe 4.0 lanes, this processor is also designed with encryption features in memory and virtualization for security assurance.

Rich I/O expansion with PCIe 4.0

PCIe 4.0 offers a 16 GT/s that doubles the bandwidth of PCIe 3.0 and delivers lower power consumption, better lane scalability and backwards compatibility. KRPA-U16 features up to 5 PCIe lanes, including two PCIe 4.0 lanes, and one PCIe 4.0 x24 that can be split to separate x16 and x8 link with an ASUS butterfly card for more storage and graphics power, or for network expansion.

Ultrafast connectivity for HPC applications

KRPA-U16 features two embedded Gigabit Ethernet ports and supports up to 100G or higher interconnect speeds with the addition of a PCIe 4.0 (Gen 4 x16 link) for its OCP 2.0 mezzanine card for HPC applications that require high-bandwidth, low-latency network support to connect multiple nodes and clusters. ASUS offers an authorized validation OCP mezzanine card for these models.

More storage, NVMe solutions

Designed for higher storage throughput performance and storage responsiveness for advanced computing, KRPA-U16 features 12 NVMe solutions with six onboard Oculink ports via a PCIe x4 link and six additional Oculink ports via an ASUS riser card for faster data transfers. Additionally, 16 SATA and SAS drives are available for budget-friendly applications.

Speed up with onboard M.2

With x4 PCI Express® 4.0 bandwidth, KRPA-U16 features up to 32Gbps M.2 for faster data-transfer speeds - ideal for an operating system or application drive.

Comprehensive IT infrastructure management

KRPA-U16 features an embedded iKVM module and ASUS Control Center software to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline.

• General Information
• • Manufacturer
  • ASUS Computer International
  • Manufacturer Website Address
  • http://usa.asus.com
  • Brand Name
  • Asus
  • Product Type
  • Server Motherboard
